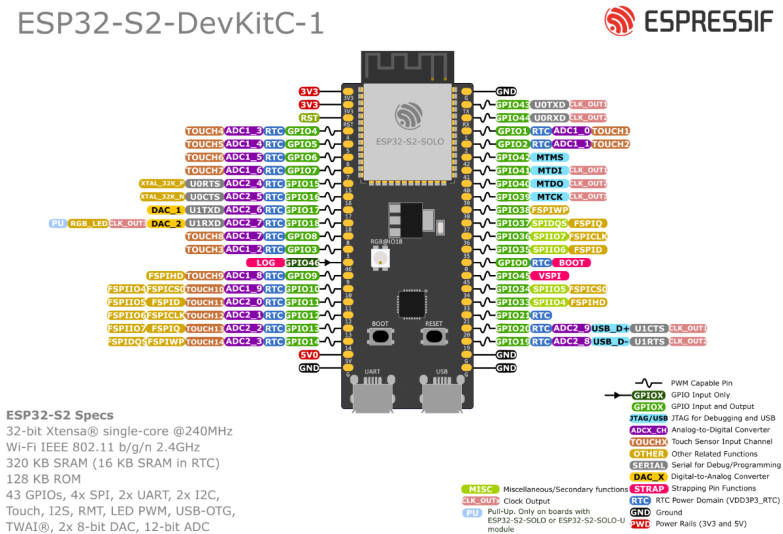

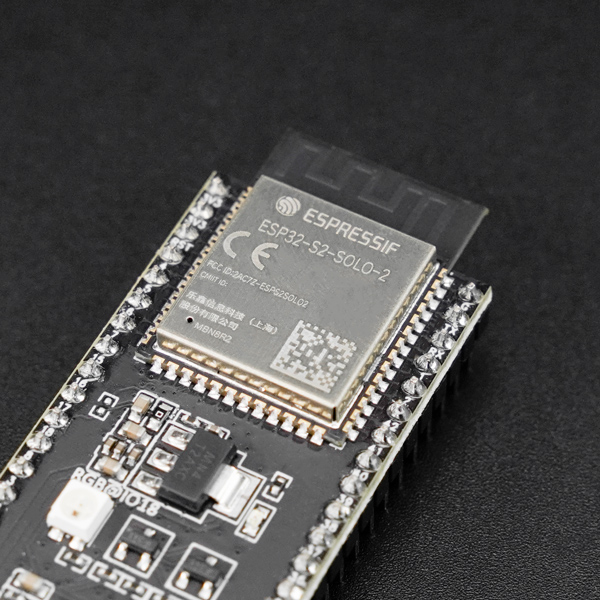

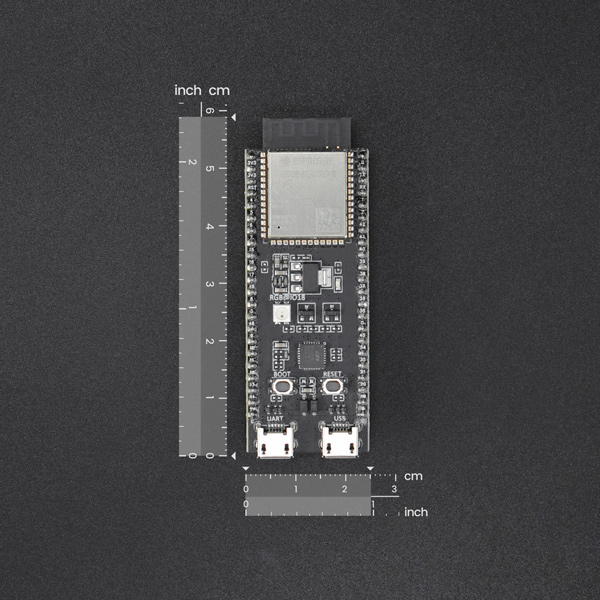

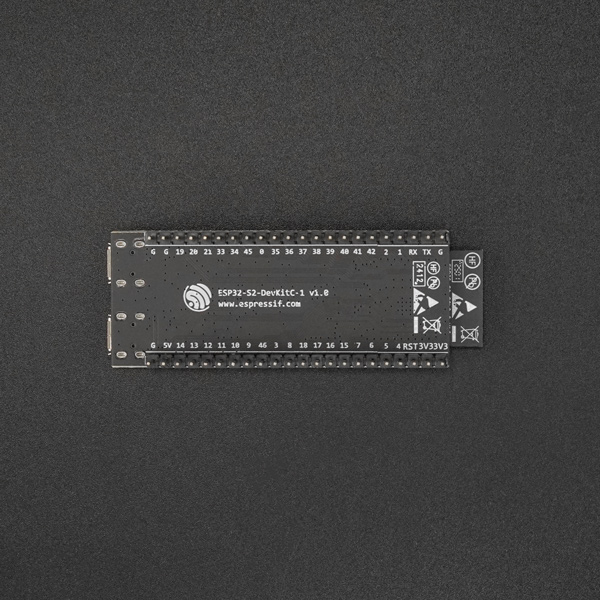

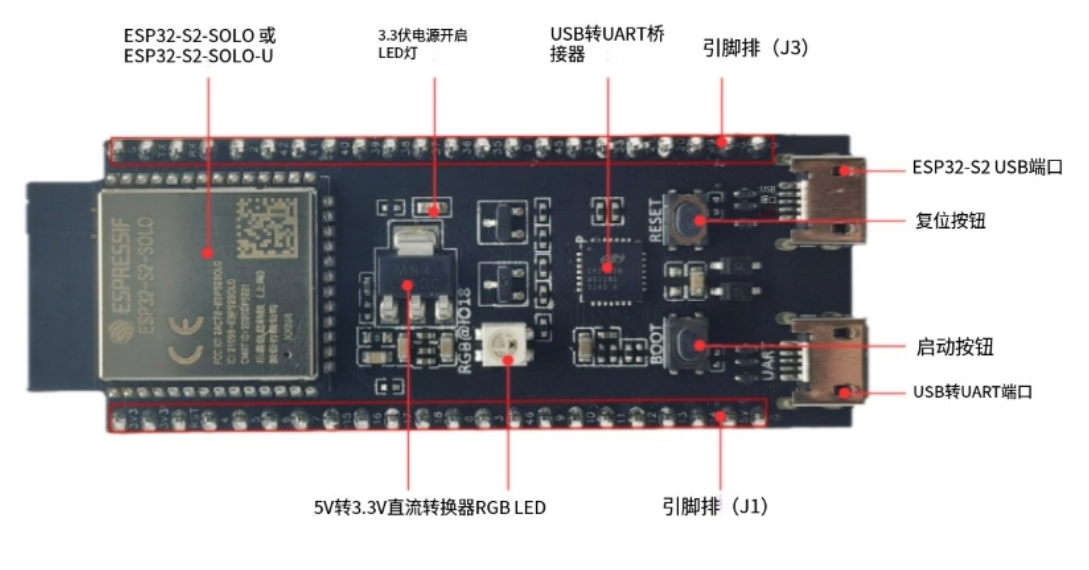

排针J11 |
名称 | 类型 | 功能 |
3V3 | P | 3.3 V 电源 |
3V3 | P | 3.3 V 电源 |
RST | I | CHIP_PU |
4 | I/O/T | RTC_GPIO4, GPIO4, TOUCH4, ADC1_CH3 |
5 | I/O/T | RTC_GPIO5, GPIO5, TOUCH5, ADC1_CH4 |
6 | I/O/T | RTC_GPIO6, GPIO6, TOUCH6, ADC1_CH5 |
7 | I/O/T | RTC_GPIO7, GPIO7, TOUCH7, ADC1_CH6 |
15 | I/O/T | RTC_GPIO15, GPIO15, U0RTS, ADC2_CH4, XTAL_32K_P |
16 | I/O/T | RTC_GPIO16, GPIO16, U0CTS, ADC2_CH5, XTAL_32K_N |
17 | I/O/T | RTC_GPIO17, GPIO17, U1TXD, ADC2_CH6, DAC_1 |
18 | I/O/T | RTC_GPIO18, GPIO18, U1RXD, ADC2_CH7, DAC_2, CLK_OUT3, RGB LED |
8 | I/O/T | RTC_GPIO8, GPIO8, TOUCH8, ADC1_CH7 |
3 | I/O/T | RTC_GPIO3, GPIO3, TOUCH3, ADC1_CH2 |
46 | I | GPIO46 |
9 | I/O/T | RTC_GPIO9, GPIO9, TOUCH9, ADC1_CH8, FSPIHD |
10 | I/O/T | RTC_GPIO10, GPIO10, TOUCH10, ADC1_CH9, FSPICS0, FSPIIO4 |
11 | I/O/T | RTC_GPIO11, GPIO11, TOUCH11, ADC2_CH0, FSPID, FSPIIO5 |
12 | I/O/T | RTC_GPIO12, GPIO12, TOUCH12, ADC2_CH1, FSPICLK, FSPIIO6 |
13 | I/O/T | RTC_GPIO13, GPIO13, TOUCH13, ADC2_CH2, FSPIQ, FSPIIO7 |
14 | I/O/T | RTC_GPIO14, GPIO14, TOUCH14, ADC2_CH3, FSPIWP, FSPIDQS |
5V | P | 5 V 电源 |
G | G | 接地 |
